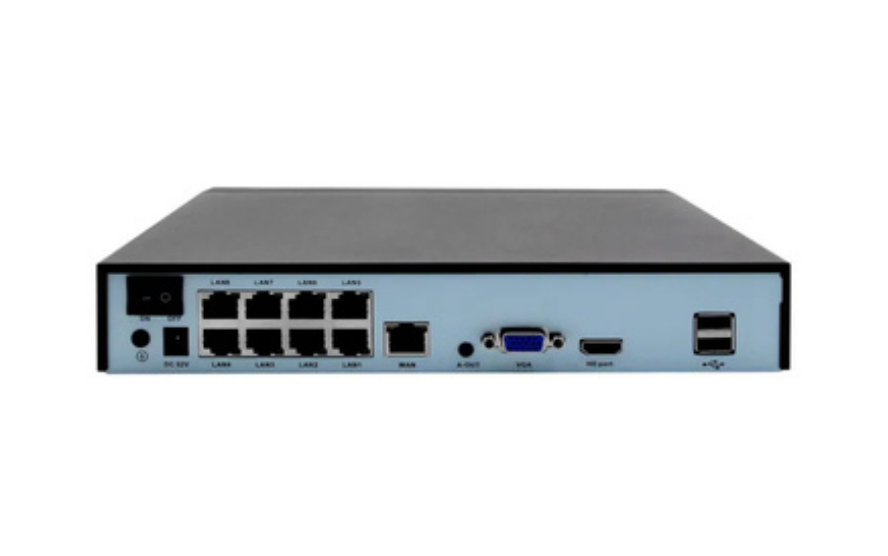

NVR-7516P-M
Product Description Features: Support Face Detection Support VGA, HDMI full HD output simultaneously; Support ONVIF; access third party; Support Web, CMS, center platform management software XMEYE, provide SDK development; Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions; Support various mobile monitoring (iPhone, Android); Remote Access, With DNS (ARSP),easy to monitor remotely.
Download Datasheet
Key Features of the Smartaegis-WT2053 Series
Heavy Duty Gate Arm Barrier
- Non-Isokinetic Double Dead Point Four-Link Mechanism
- Ensures smooth, stable arm movement.
- Group Spring Balancing
- Reduces motor load and extends lifespan
- Hall Limit Sensors
- Combined with structural limits for precise positioning.
- Magnet-Based Limit Adjustment
- Non-contact horizontal/vertical calibration.
- CNC-Processed Drive Parts
- High-precision components; no cast parts.
- Fire Protection Interfaces
- Built-in circuits for emergency shutdown.
- CNC-Processed Drive Parts
- High-precision components; no cast parts.
- Infrared/Pressure Wave Radars
- Obstacle detection for automatic stoppage.
- Waterproof & Moisture-Proof Design
- Suitable for harsh environments.
Structural Design
Head: Houses motor, gearbox, and Hall limit sensors.
Cam Door: Reinforced door for secure alignment.
Chassis: Constructed from 2.0mm cold steel; critical parts use ≥4.0mm steel for durability.
Barrier Arm Rest Stand: Heavy-duty stand included for stable arm placement in the resting position. Made of galvanized steel to resist corrosion.
Lightweight alloy with corrosion-resistant coating; adjustable length (3–6 meters).
Technical Specifications
| Features | Specification | |
|---|---|---|
| Protection Level | IP64 (dust-tight and water-resistant) | |
| Voltage | 220V ±10% or 110V ±10%, 50/60Hz | |
| Motor | 220V/9W pure copper motor with high-precision turbine gearbox | |
| Remote Control Distance | ≥10 meters | |
| Net Weight | 80 kg | |
| Arm Speed Adjustment | 1.5s, 3.0s, 4.5s, or 6.0s (4 preset speeds) | |
| Boom Length | Adjustable from 3 meters to 6 meters (customizable during installation) | |
| Chassis Dimensions | 340 × 250 × 1030 mm | |
| Operating Temperature | -30°C to +80°C | |
| Relative Humidity | < 90% |
